3TECH LED IMPLANT UNIT POWER PRO With 20:1 Contra-Angle

3TECH LED IMPLANT UNIT POWER PRO With 20:1 Contra-Angle

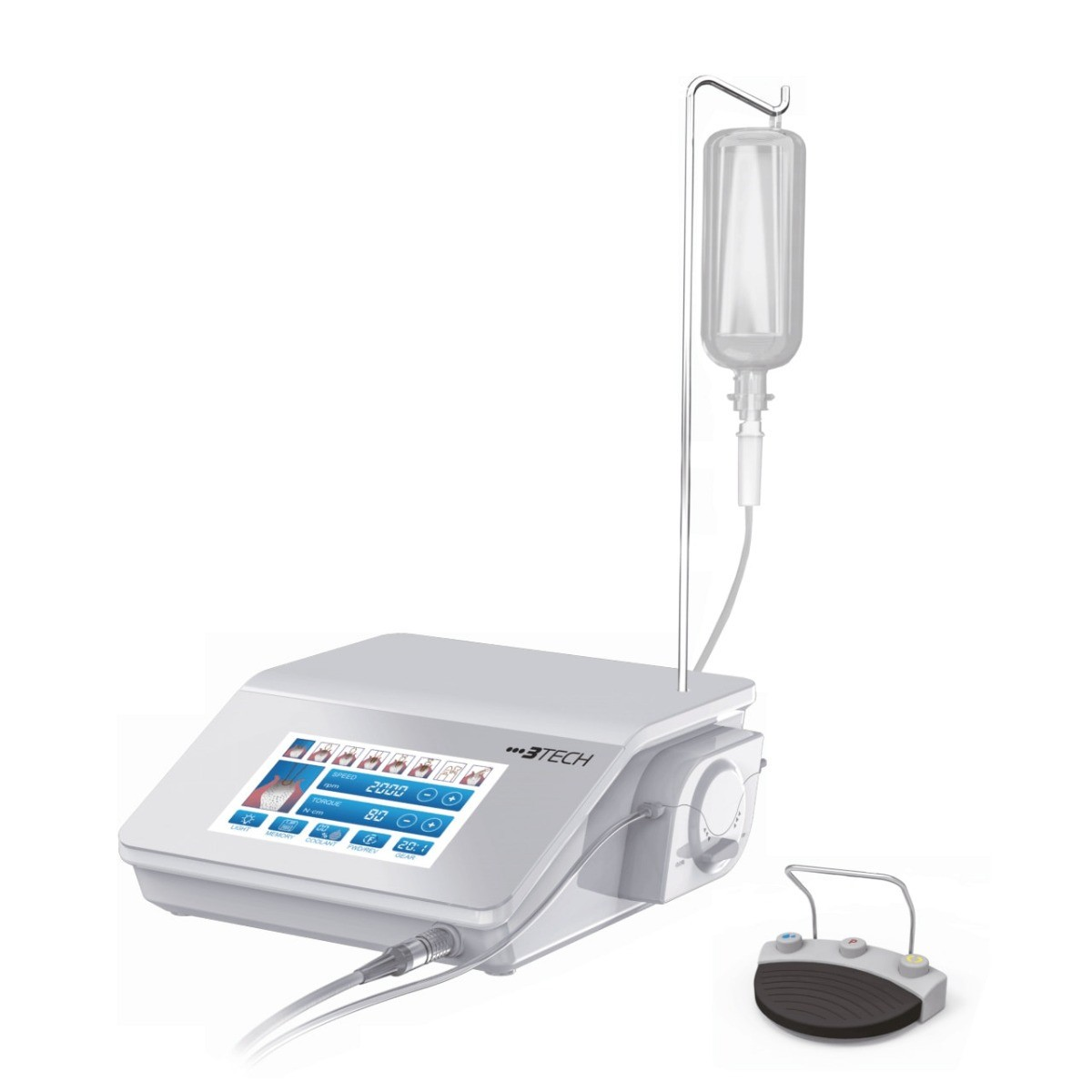

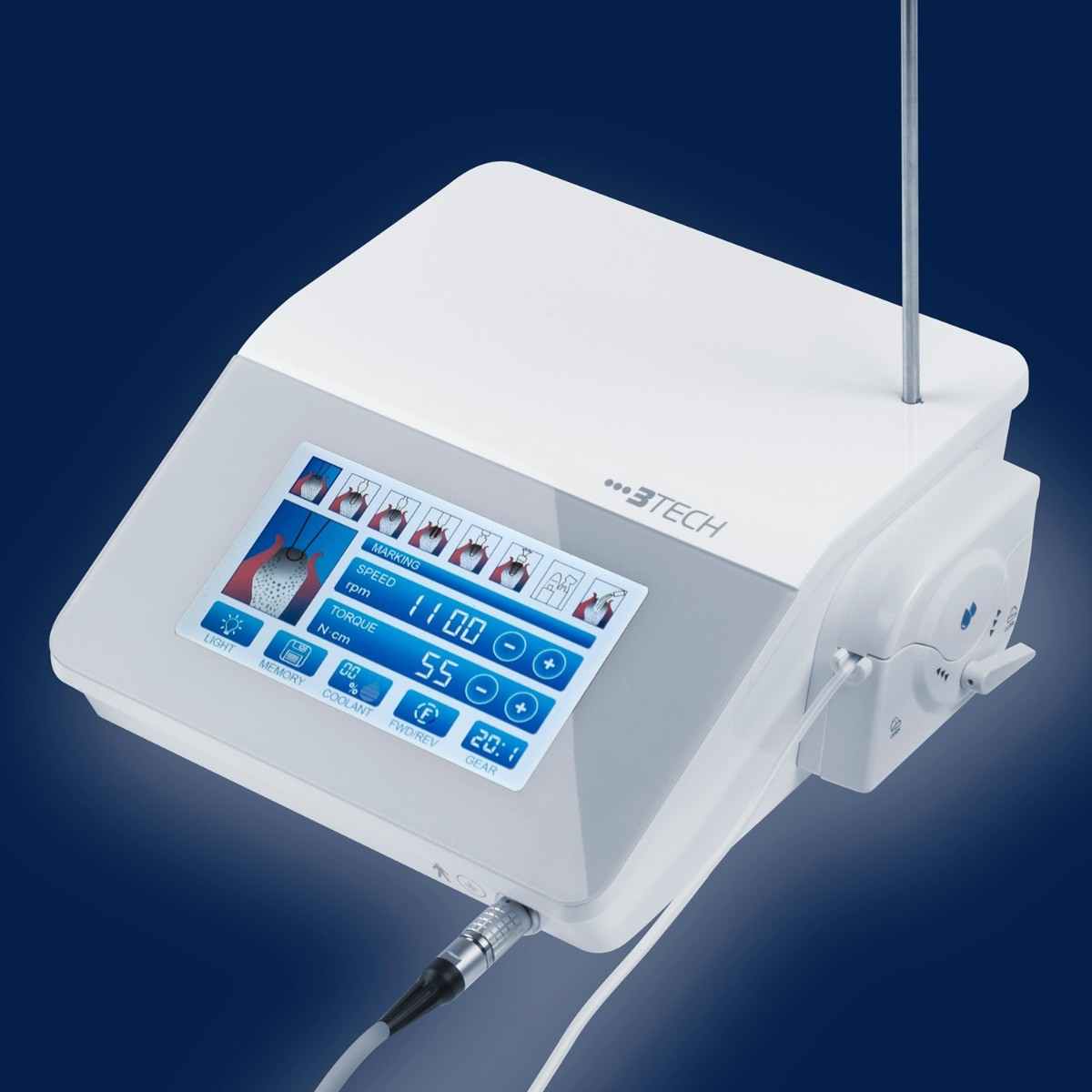

The 3TECH LED IMPLANT UNIT POWER PRO is an implantology motor for precision implant surgery.

• Ergonomic and intuitive.
• 8 programmes.
• Powerful and stable torque.
• 2 year warranty.

Available Settings

Via touch screen:

• 8 pre-programmed programs: 3 drilling, tapping, implantation, pillar screw locking, user-defined mode and cleaning.
• Lighting control: LED on/off.
• Water volume adjustment.
• Memory of adjustment parameters.
• Selecting forward/backward rotation.
• Adjusting the gear ratio with the handpiece.
• Control of engine speed.
• Motor torque adjustment.

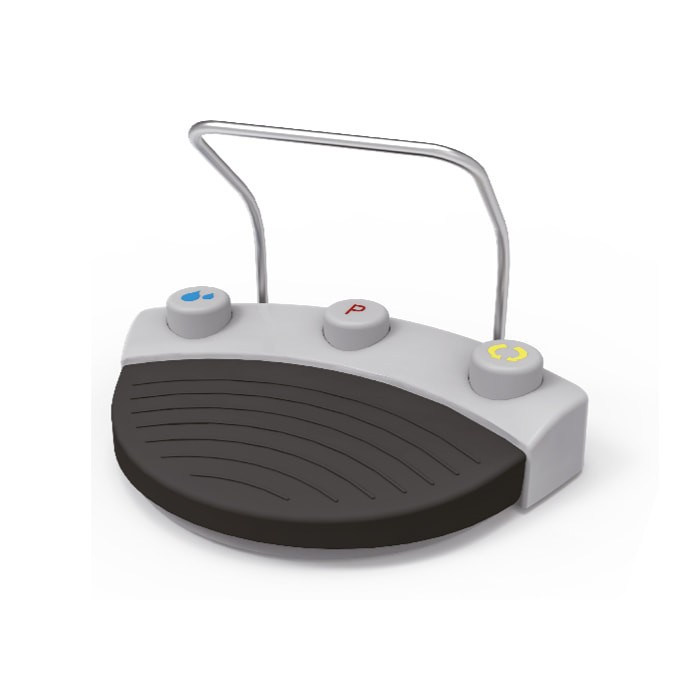

Via pedal control:

• Program selection.
• Water volume adjustment.
• Direction of forward/backward rotation.
• Speed control.

Characteristics

• High-performance and precise system.
• Save time with an intuitive interface.

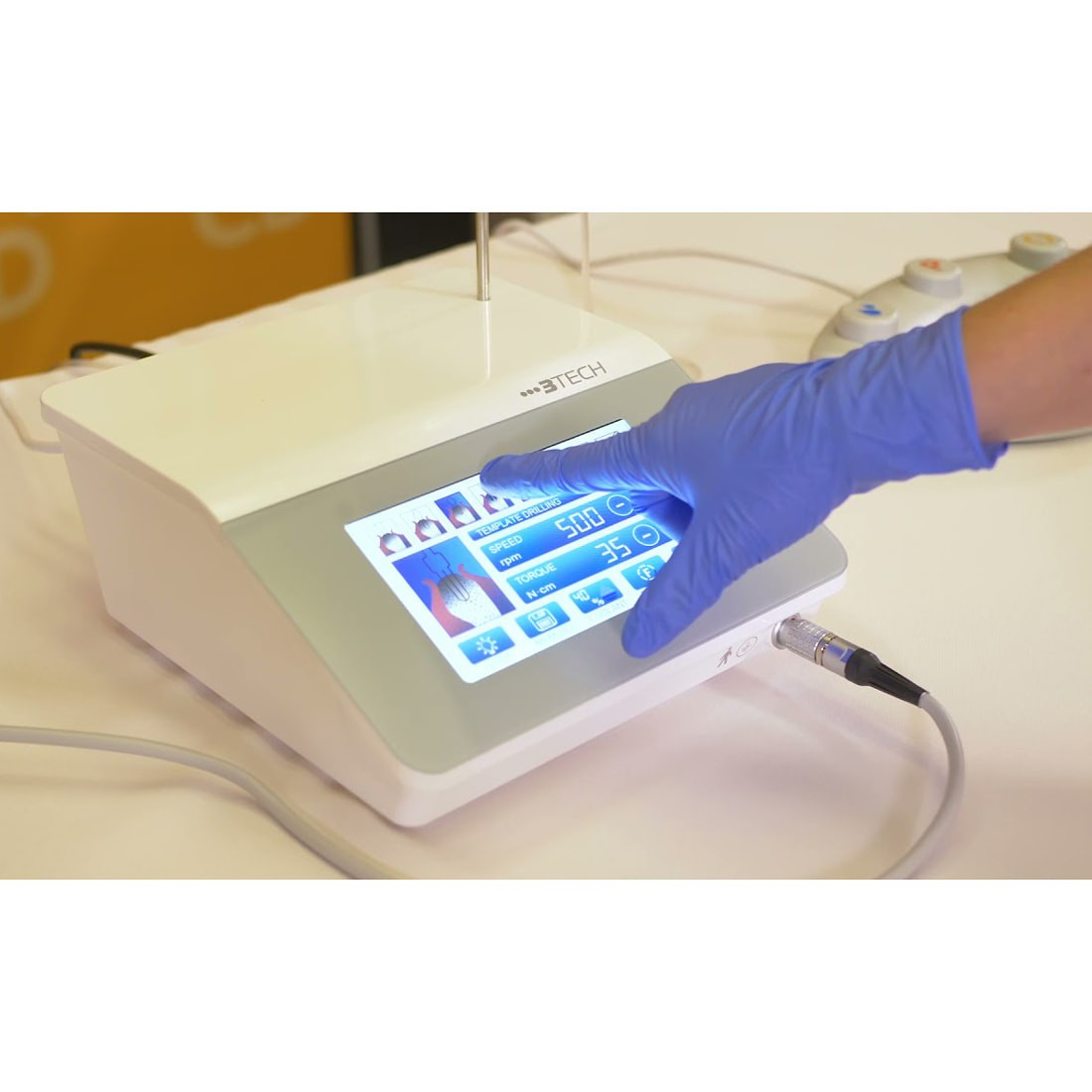

• Easy-to-clean LCD touch screen.
• Simple intuitive menu.
• 6 levels of cooling water flow settings.
• Rotational speed range: 300 - 40,000 rpm.
• Six water flow levels: 00%, 20%, 40%, 60%, 80% and 100%.
• Torque range: 5-80 Ncm.
• Dimensions (W x D x H): 276 x 267 x 110 mm.
• Screen size: 152 x 84 mm.
• Input power: 150 VA.
• Input voltage: 27 V DC.
• Maximum temperature: 41.8°C.
• Maximum water volume: 110 ml/min.
• Motor cord length: 2 m.
• Pedal cord length: 2.8 m.
• Supply voltage: ~220 - 240 V.
• Power frequency: 50/60 Hz.
• Main unit weight: 3.54 kg.

3TECH IMPLANT POWER PRO 20:1 Surgical Contra-Angle

IMPLANT UNIT POWER PRO Package includes IMPLANT POWER PRO Contra-Angle:

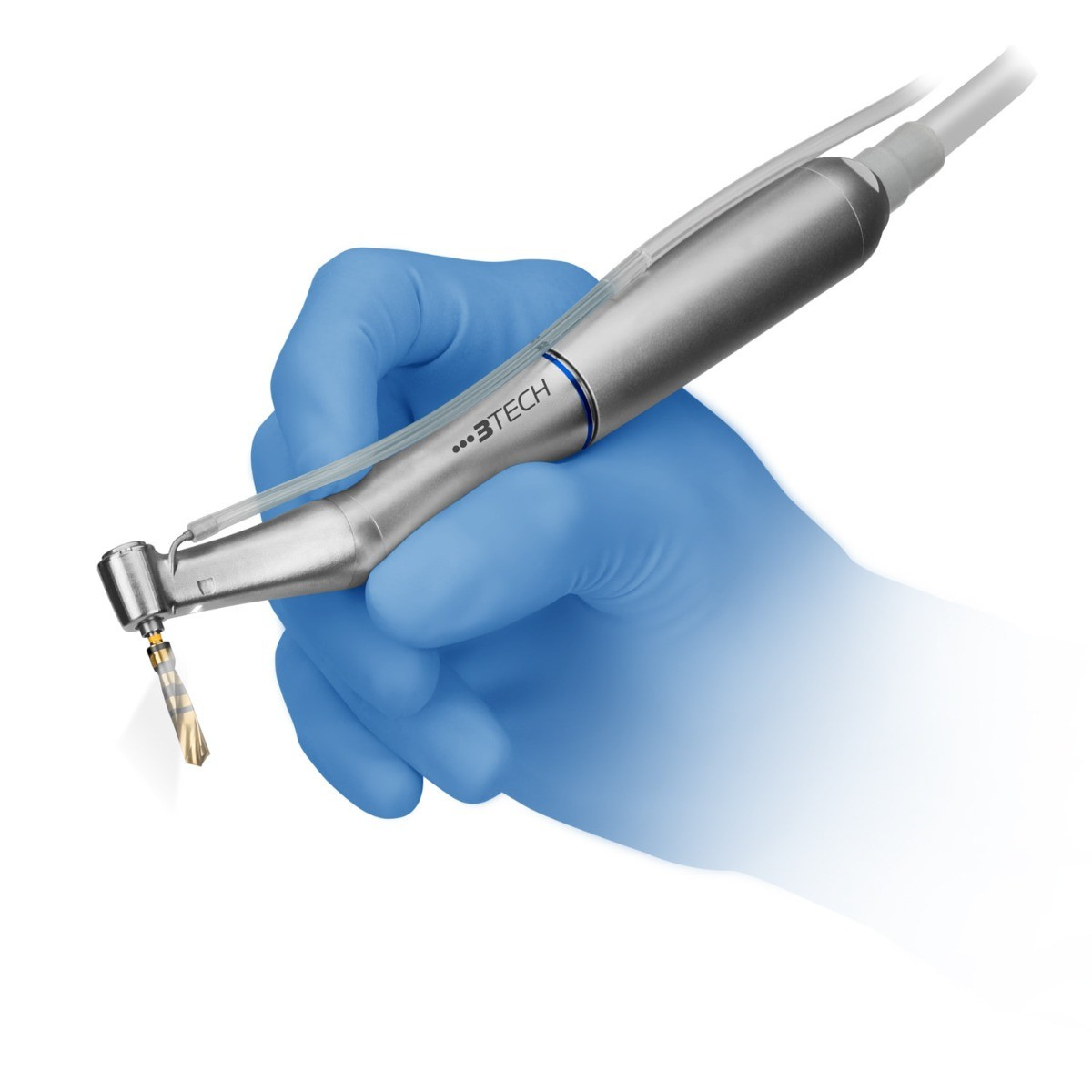

The IMPLANT POWER PRO Contra-Angle from 3TECH is a 20:1 Surgical Contra-Angle with high precision, powerful torque and high intensity LED lighting for precise implant surgery.

• Maximum speed: 2 000 rpm
• Speed ratio: 20:1
• Bur type: Ø 2.35 mm
• Torque : up to 80 Ncm
• Double irrigation system: internal / external
• Spray: 1
• Fits all type E surgery motors
• Push button
• Weight: 88g
• Warranty: 1 year

Contents

• 1 x main control unit
• 1 x handpiece motor
• 1 x 3TECH IMPLANT POWER PRO 20:1 Optic Contra-Angle
• 1 x bottle holder of serum
• 1 x power cable
• 1 x handpiece holder
• 1 x foot control
• 2 x spare fuses
• 2 x disinfection caps
• 4 x O-rings (motor)
• 4 x disposable irrigation lines
• 10 x hose clamps
• 1 x user manual
